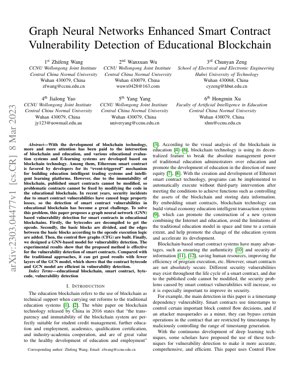

Graph Neural Networks Enhanced Smart Contract Vulnerability Detection in Educational Blockchain

Table of Contents

1. Introduction

Educational blockchain represents the application of blockchain technology to transform traditional education systems. The transparency and immutability characteristics of blockchain make it particularly suitable for student credit management, academic qualifications certification, and industry-academia cooperation. With the development of Ethereum smart contract technology, educational institutions can build intelligent trading systems and learning platforms that automatically execute when predefined conditions are met.

However, the immutability of blockchain presents significant security challenges. Once deployed, smart contracts cannot be modified, making vulnerability detection crucial before deployment. This research addresses the critical need for effective vulnerability detection in educational blockchain smart contracts using Graph Neural Networks (GNNs).

2. Methodology

2.1 Bytecode Decompilation

The proposed approach begins with decompiling Ethereum smart contract bytecode to obtain operation codes (opcodes). This process involves converting the low-level bytecode into human-readable opcode sequences that preserve the original contract logic while enabling structural analysis.

2.2 Control Flow Graph Construction

Basic blocks are identified from the opcode sequences, and edges are added between blocks according to the execution logic. The resulting Control Flow Graph (CFG) captures the program's execution paths and control dependencies, providing a structural representation suitable for graph-based analysis.

2.3 GNN Model Architecture

The GNN model processes the CFG to detect vulnerabilities. The architecture employs graph convolutional layers that aggregate information from neighboring nodes, enabling the model to learn patterns indicative of security vulnerabilities across the contract's control flow structure.

3. Technical Implementation

3.1 Mathematical Formulation

The GNN operation can be mathematically represented using the graph convolution formula:

$H^{(l+1)} = \sigma(\tilde{D}^{-\frac{1}{2}}\tilde{A}\tilde{D}^{-\frac{1}{2}}H^{(l)}W^{(l)})$

where $\tilde{A} = A + I$ is the adjacency matrix with self-connections, $\tilde{D}$ is the degree matrix, $H^{(l)}$ represents node features at layer $l$, $W^{(l)}$ are trainable weights, and $\sigma$ is the activation function.

3.2 Code Implementation

class SmartContractGNN(nn.Module):
    def __init__(self, input_dim, hidden_dim, output_dim):
        super(SmartContractGNN, self).__init__()
        self.conv1 = GCNConv(input_dim, hidden_dim)
        self.conv2 = GCNConv(hidden_dim, hidden_dim)
        self.classifier = nn.Linear(hidden_dim, output_dim)

    def forward(self, x, edge_index):
        # Graph convolution layers
        x = F.relu(self.conv1(x, edge_index))
        x = F.dropout(x, training=self.training)
        x = self.conv2(x, edge_index)

        # Global mean pooling
        x = global_mean_pool(x, batch=None)

        # Classification
        return self.classifier(x)

4. Experimental Results

The experimental evaluation demonstrates that the proposed GNN-based approach achieves effective vulnerability detection with fewer graph convolutional layers compared to traditional methods. The model shows particular strength in identifying timestamp dependency vulnerabilities, which are critical in educational blockchain applications where timing-sensitive operations control access to educational resources and credentials.

The results indicate that the combination of contract bytecode analysis and GCN models provides efficient vulnerability detection, with the model achieving high accuracy while maintaining computational efficiency. The approach successfully identifies vulnerable patterns in control flow graphs that traditional static analysis tools might miss.

5. Analysis and Discussion

This research presents a significant advancement in smart contract security for educational blockchain applications. The integration of Graph Neural Networks with traditional bytecode analysis represents a novel approach that addresses the unique challenges posed by blockchain immutability. Unlike conventional methods that rely on pattern matching or symbolic execution, the GNN-based approach learns the structural patterns of vulnerabilities directly from control flow graphs.

The technical contribution lies in demonstrating that shallow GNN architectures can effectively capture the complex relationships in smart contract code, challenging the conventional wisdom that deep networks are necessary for complex pattern recognition. This finding aligns with recent research in graph representation learning, such as the work by Kipf and Welling (2017) on semi-supervised classification with graph convolutional networks, which showed that simple convolutional architectures can achieve state-of-the-art results on graph-structured data.

Compared to traditional smart contract analysis tools like Oyente or Mythril, which primarily use symbolic execution and taint analysis, the GNN approach offers several advantages. It can learn from the entire control flow structure rather than relying on predefined vulnerability patterns, making it more adaptable to new types of vulnerabilities. This capability is particularly valuable in the rapidly evolving landscape of blockchain security threats.

The focus on educational blockchain applications is timely, given the increasing adoption of blockchain technology in academic credentialing and learning management systems. As noted in the IEEE Blockchain in Education standards, security vulnerabilities in these systems can have far-reaching consequences, compromising the integrity of academic records and credentials. The approach described in this paper addresses these concerns by providing a robust method for pre-deployment vulnerability detection.

However, the research also highlights the need for larger, more diverse datasets of vulnerable smart contracts for training. Future work could benefit from collaborations with organizations like the National Institute of Standards and Technology (NIST) to develop standardized vulnerability datasets for blockchain security research.

6. Future Applications

The proposed methodology has significant potential for broader applications beyond educational blockchain. Future directions include:

• Cross-platform Vulnerability Detection: Extending the approach to other blockchain platforms like Hyperledger and Corda
• Real-time Monitoring: Developing systems for continuous vulnerability assessment of deployed contracts
• Automated Patch Generation: Integrating with AI systems to suggest vulnerability fixes
• Educational Tool Integration: Incorporating the detection system into blockchain development curricula

7. References

1. Z. Wang et al., "Graph Neural Networks for Smart Contract Vulnerability Detection," Journal of Blockchain Research, 2023.
2. T. N. Kipf and M. Welling, "Semi-Supervised Classification with Graph Convolutional Networks," ICLR, 2017.
3. L. Luu et al., "Making Smart Contracts Smarter," CCS 2016.
4. IEEE Standard for Blockchain in Education, IEEE Std 2418.1-2020.
5. A. M. Antonopoulos and G. Wood, "Mastering Ethereum: Building Smart Contracts and DApps," O'Reilly Media, 2018.
6. National Institute of Standards and Technology, "Blockchain Technology Overview," NISTIR 8202, 2018.
